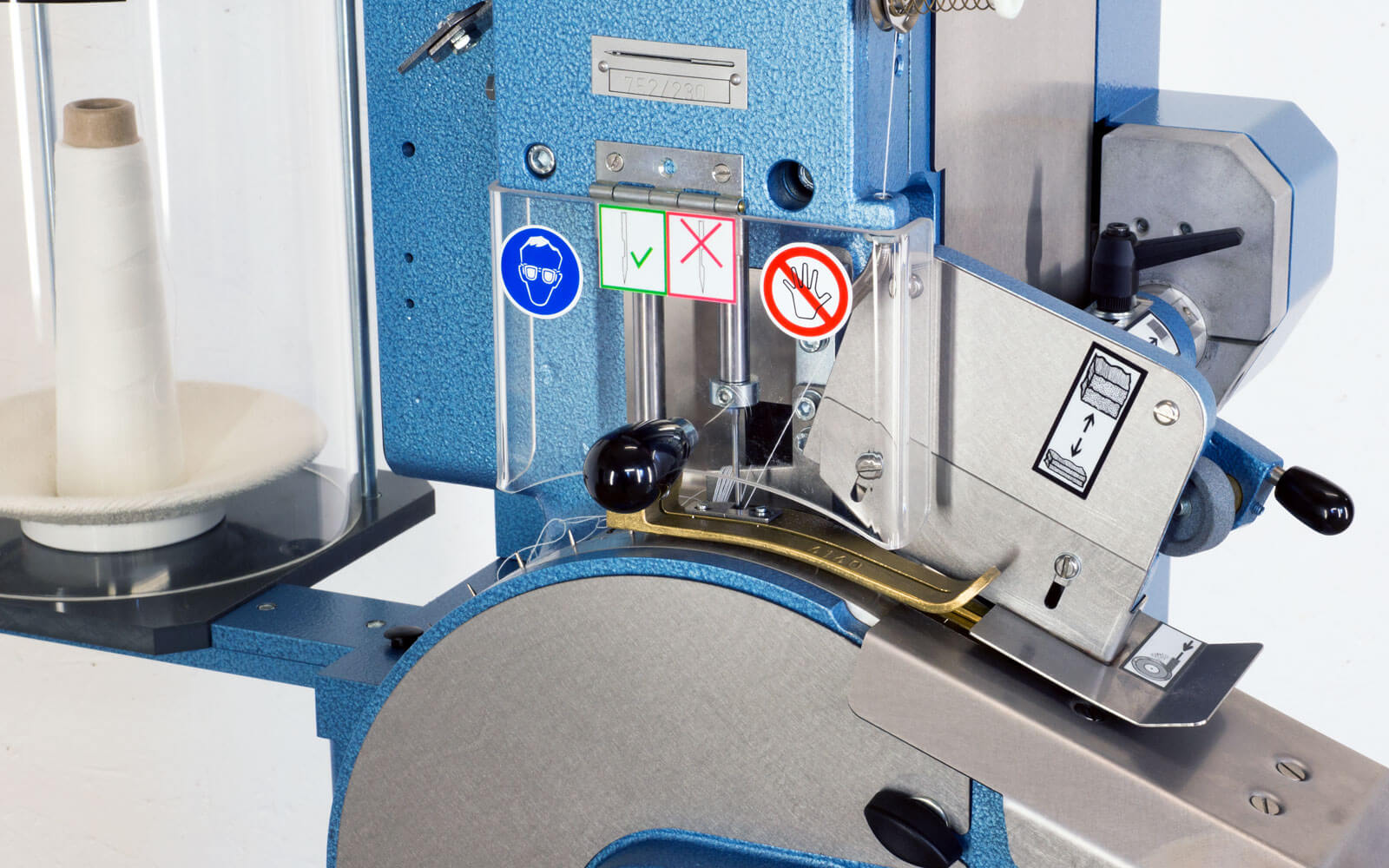

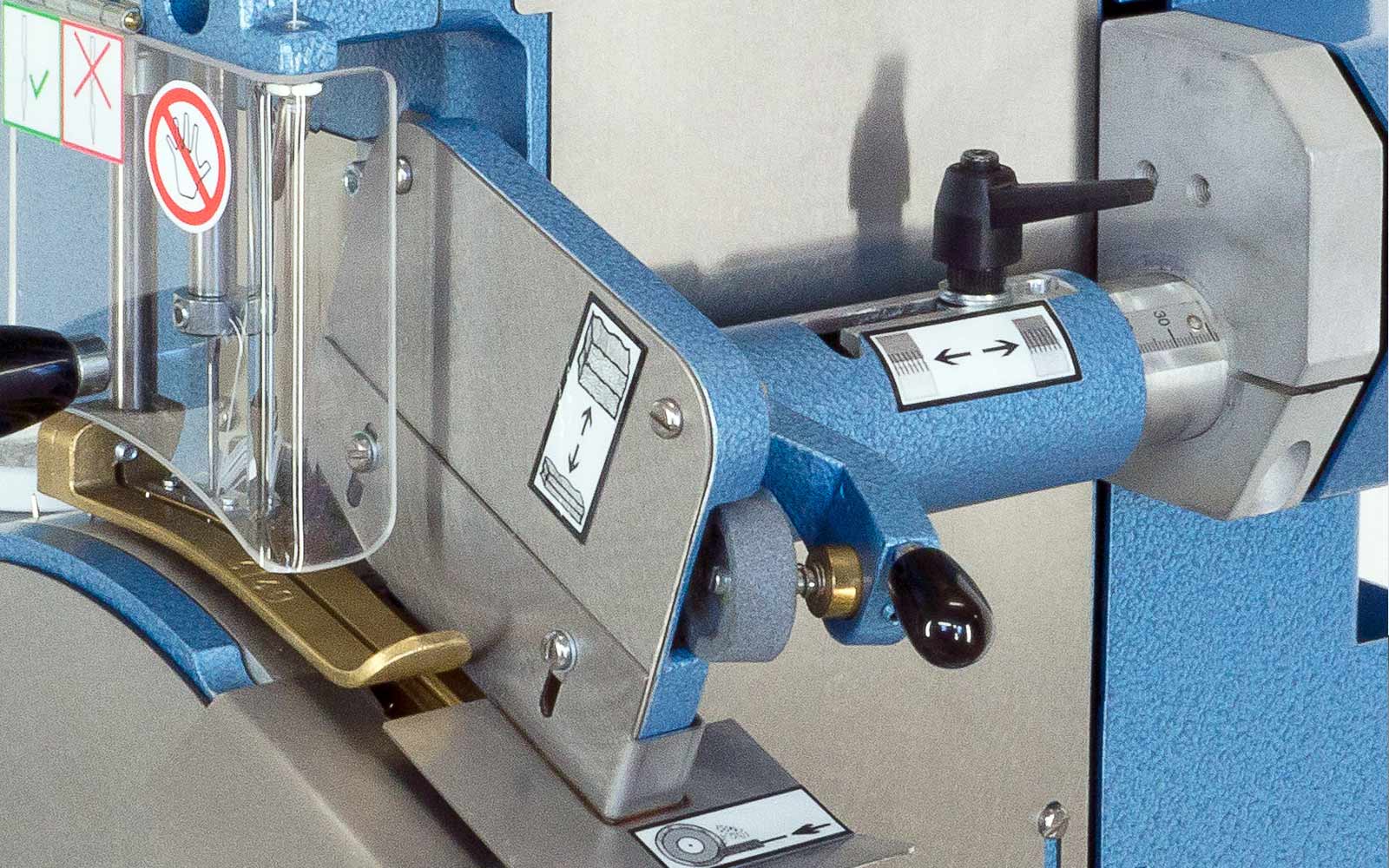

Strong and flexible. The Dohle Variant-S.
Butt-end sewing machine on portable stand. Fabric transport by sliding wheel.
For light to heavy fabrics and materials such as cotton, home textiles, denim, plastic materials, technical textiles, etc. The transport of the fabric is realized by a sliding wheel with pins. This helps to minimize a dislocation between the both layers.
Available in three different seam widths (appr. 28mm, 40mm or 50mm).
Single thread butt-end seam
The sewing heads of the Variant-S are also available as a rail mounted execution Variant-L.
- Seam widths: appr. 28mm (S7), appr. 40mm (S8) or appr. 50mm (S9)
- Voltage: 400 V three-phase or 230 V single-phase
- Other voltages possible on request
- Integrated cutting device (knife appr. ø 100mm)
- Integrated knife grinding device
